High Precision Laser Cutter for Efficient, Accurate Cutting

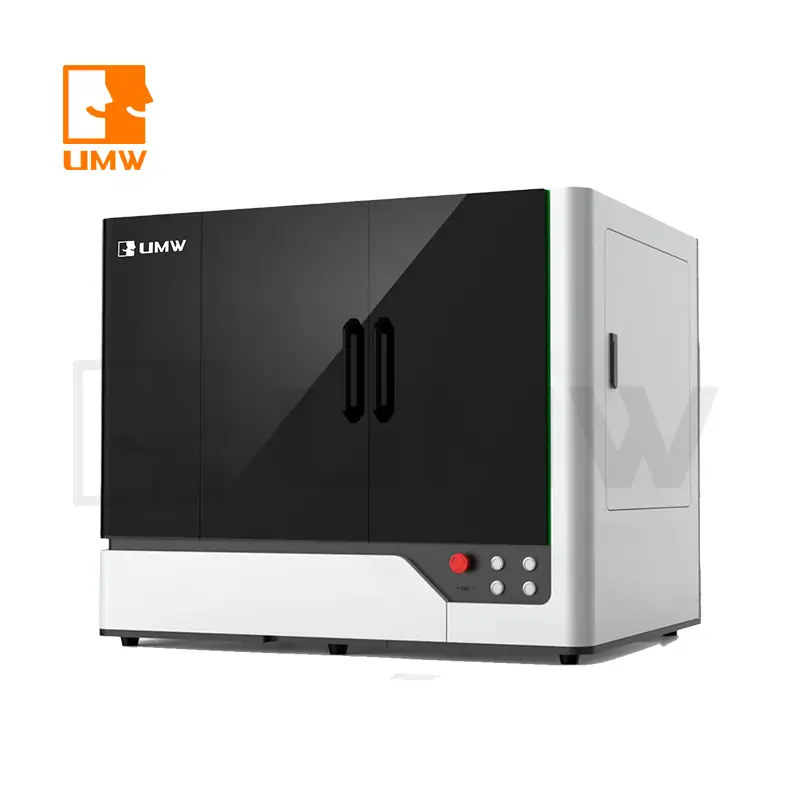

2030 High Precision Laser Cutter Machine

Desktop Design: Small size with high precision, perfect for any workspace.

Super Accurate Cuts: Ideal for detailed work with minimal error.

Ideal for Batch Processing: Consistent quality in small part production.

share:

High Precision

Achieves accurate cuts with minimal error.

Fast Cutting Speed

High speed for quick, efficient production.

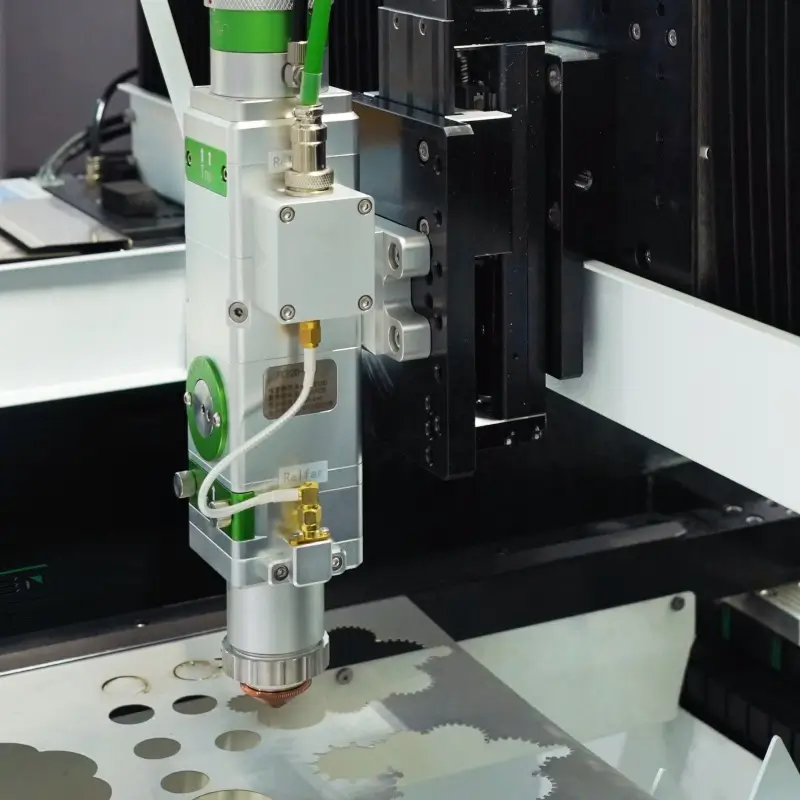

Energy Efficient

Reduces energy consumption, saving costs.

Metal Cutting

Cutting steel, aluminum, and other metals.

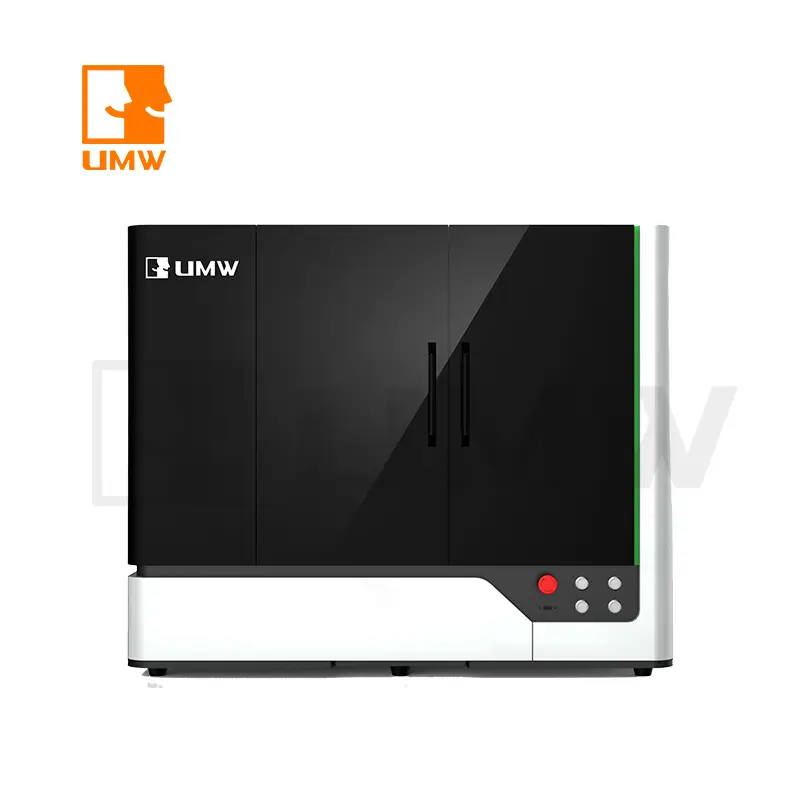

Get more detailed information about laser micro cutting, please get in touch with us!

Achieve ultra-precise cuts with a positioning accuracy of 0.02mm, ensuring high-quality results.

With a max linkage speed of 50m/min, this cutter improves production speed while maintaining top-notch precision.

Designed to cut a variety of metals including stainless steel, aluminum, copper, and more, offering great versatility.

Equipped with multiple safety protections such as abnormal laser alarms, low pressure warnings, and more to ensure safe operation.

Optimized for energy use, reducing power consumption and lowering operational costs, making it both cost-effective and eco-friendly.

Item	Subitem	2030 High Precision Laser Cutter
Basic parameter	Working area	200*300mm
	Table load bearing	60kg
	Machine overall dimensions	950×820×780mm
	Machine weight	220kg
	Z axis travel	100mm
Operation parameter	Max. linkage speed	50m/min
	Max. acceleration	0.5G
	Positioning accuracy	0.03 mm
	Repositioning accuracy	0.02 mm
	Φ30mm roundness	≤0.1mm
Optical system	Laser source	Max, Raycus, JPT
Optical system	Laser head	RayTools
Other parameters configuration	Total power capacity/ current with 1KW Laser source	40KVA/183A
Other parameters configuration	Total power capacity/ current with 1.5KW Laser source	48KVA/220A
