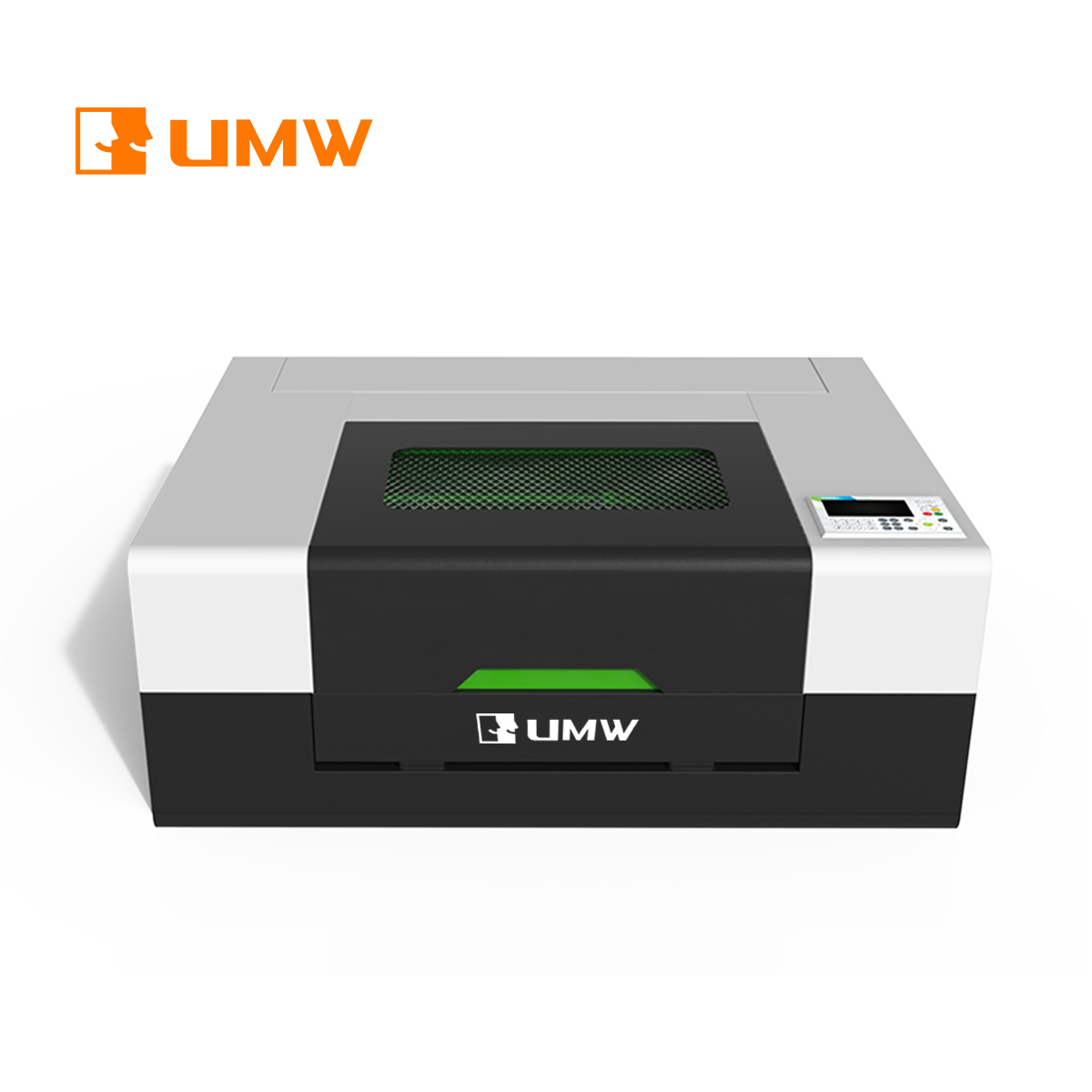

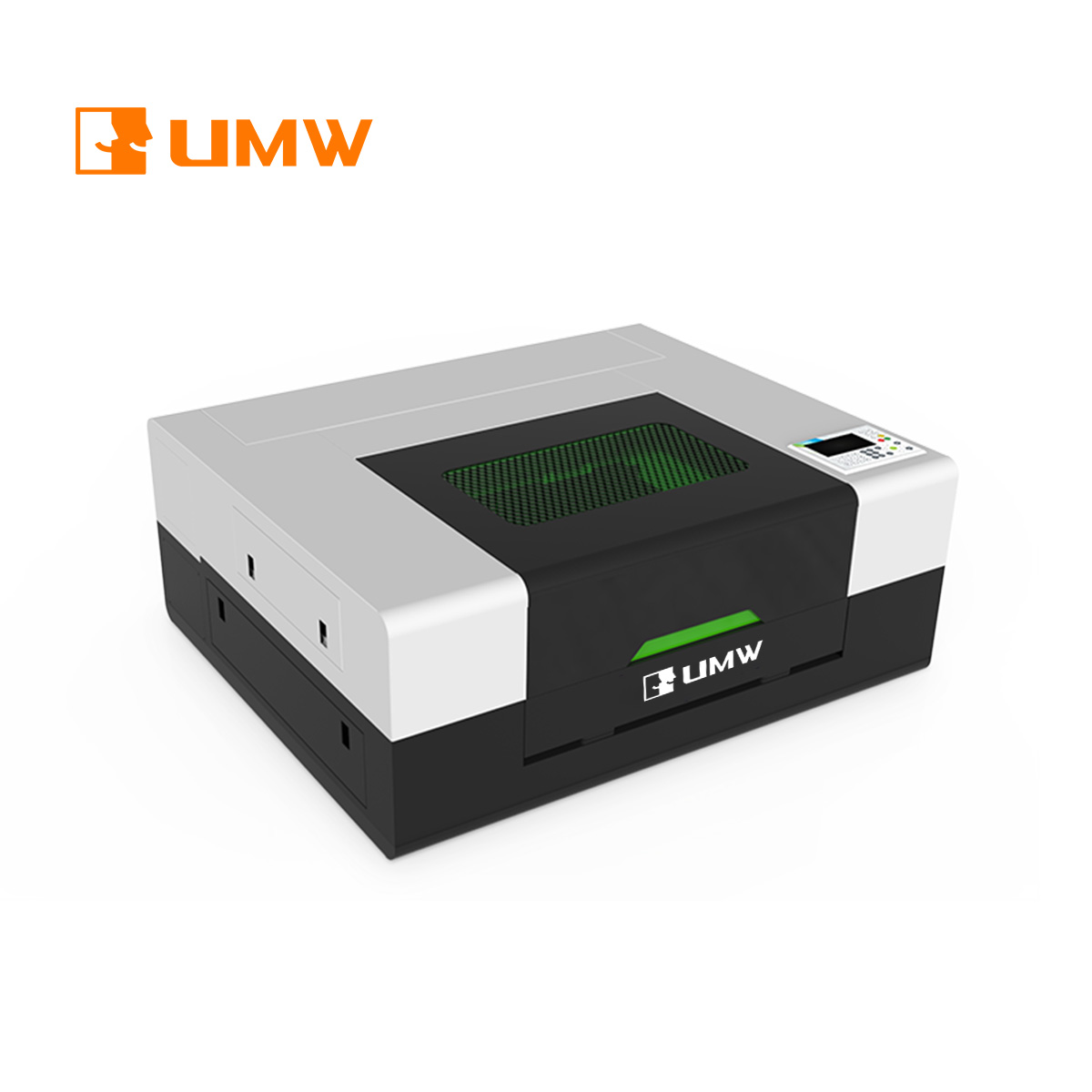

UR-5030 Mini co2 laser engraving machine manufacturer
The 500x300mm compact workbench design takes up little space, is flexible and convenient, and is ideal for small batch customization. Low power consumption, high precision, and easy operation help you realize your creativity quickly at low cost, bringing unlimited possibilities to the fields of advertising, crafts, and education.
Share:
high efficiency
high cost performance
High precision
Materials widely used
CO2 Laser Cutting & Engraving Machine Model List
| Mode |
UC-5030
|
UR-1390
|
UR-1325
|
||
|---|---|---|---|---|---|
| Working Area | 500*300mm | 1300*900mm | 1300*2500mm | ||
| Type | Closed | Closed | Open | ||
| Laser Power Supply | 40w | 70w,90w,100w,130w,150w | 130w,150w,200w,300w | ||
| Power Adjustment Range | 10%-100% | 10%-100% | 10%-100% | ||
| Output Central Wavalength | 1064nm | 1064nm | 1064nm | ||
| Cooling Method | Built-in Circulating Water Pump | Water Cooling | Independent Water Chiller | ||
| Locate Accuracy | +0.1mm | +0.1mm | +0.1mm | ||
| Upgrade | Smoke Purifier | Auto Focus Laser Head, Up-down WorkTable Also be made into: 6090 (600*900mm), 1410 (1400*1000mm),1610 (1600*1000mm) | Also be made into: 1530 (1500*3000mm), 2030 (2000*3000mm) | ||
UR-5030 Product Advantages
Simple and classic design:
Compact design, space-saving structure, and more convenient operation. Suitable for processing small objects.
High-Cost Performance:
High-cost performance, low operating costs, and improved return on investment.
High Quality:
The cutting and engraving effects are delicate and meet high standards.
Safety and Environmental Protection:
There is no dust in the cutting process, and the smoke can be filtered through the exhaust system, which is environmentally friendly and safe.

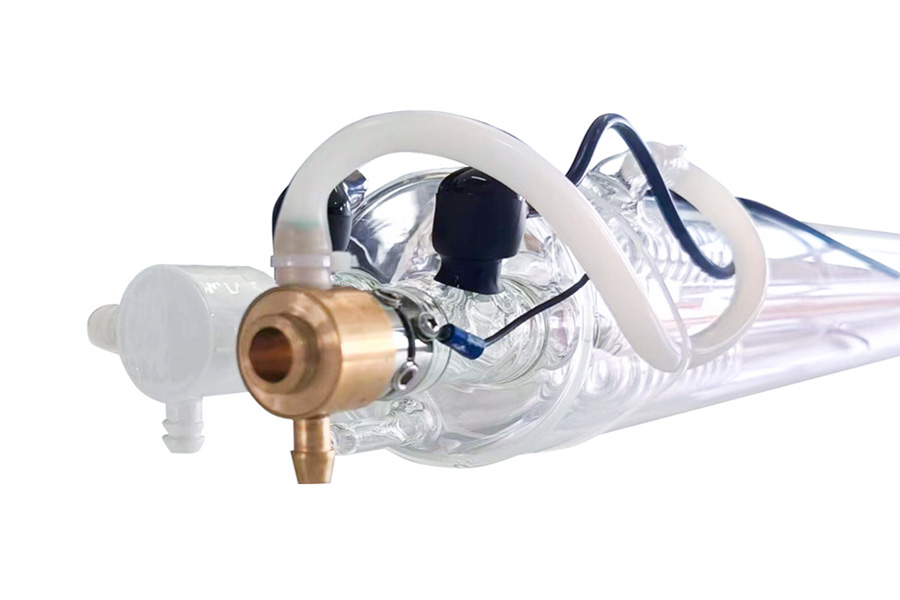

Highly stable laser tube
Strictly select laser tube suppliers to ensure stable output. A variety of powers from 75W to 300W are available for users to choose from, and its working life can reach 10,000 hours.

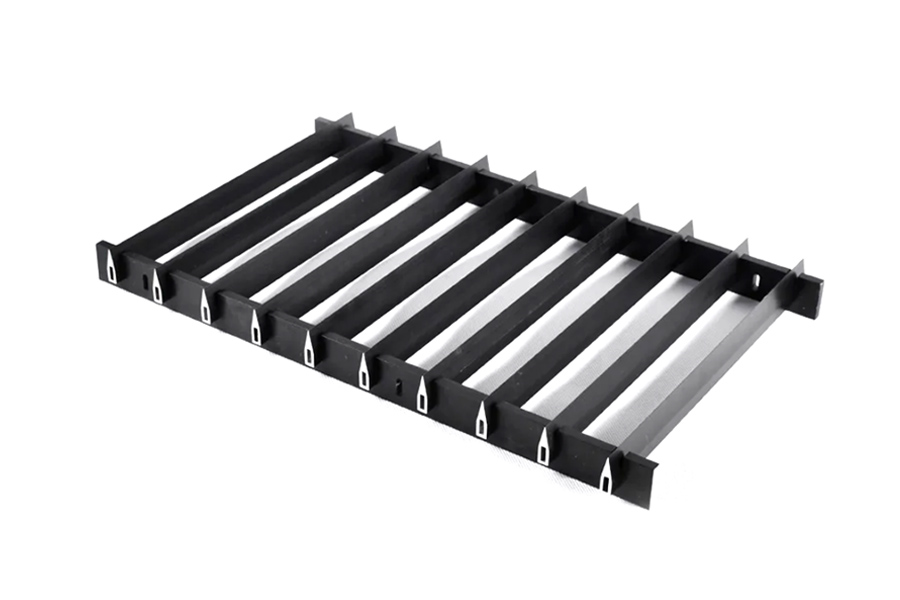

Upgrading Encrypted Blade Table
The gap between the blade and the material is relatively large, and the contact surface with the material is relatively small. The blade can adjust the density, which is very suitable for rigid advertising boards such as acrylic and MDF. Reduce the diffuse reflection of the laser and avoid leaving marks on the bottom of the material.

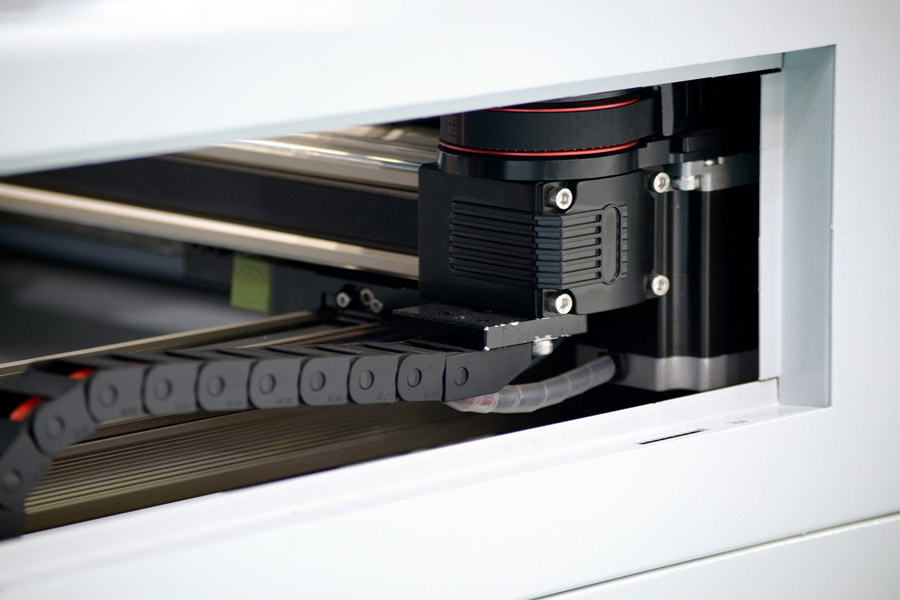

Belt drive system
Lightweight and flexible, more suitable for light-load processing. Low noise and easy maintenance. Light weight and small inertia enable the laser head to move at a higher speed, significantly improving cutting and engraving efficiency.
Ruida Control System
Use the latest generation RDC6445G system of Ruida Technology. It has a friendly operation interface and more powerful functions. Work time preview is accurate to milliseconds. Processing path, coordinate points, and progress bar are displayed in real time. The controller motion control function is more complete.
Product Details
Every detail reflects the quality of precision workmanship. The 5030 model CO2 laser cutting and engraving machine is carefully polished from structure to function to ensure efficient processing and excellent performance. Every part is strictly quality controlled to provide a stable and reliable user experience.
Get more detailed information about UR-5030 Small CO2 laser engraving cutting machine engraver, please get in touch with us!
Need customization?
No problem!
Please tell us your requirements. Our professional team of engineers and strong production capacity will meet your needs!
desktop co2 laser machine sample display
| Materials | Engraving | Cutting |
|---|---|---|
| Acrylic | √ | √ |
| Glass | √ | × |
| Plastic sheets | √ | √ |
| Leather | √ | √ |
| Metal | √ | × |
| Paper | √ | √ |
| Plastics | √ | × |
| Stone | √ | × |
| Textiles | √ | √ |
| Wood | √ | × |
co2 laser engraving machine working demonstration
The umw CO2 laser engraving machine has smooth cutting edges, no burrs, and exquisite engraving details. The processing results are uniform and consistent, without the need for multiple adjustments, ensuring the stability of mass production.
UMW vs other brands, what are the advantages?
With years of industry experience and technical accumulation, UMW is committed to providing high-quality CO2 laser-cutting machines. We ensure that each machine meets high standards through precise manufacturing processes, innovative technologies, and strict quality control.
| Advantage | UMW CO2 Laser Machines | Other CO2 Laser Machines |
|---|---|---|
| Machine Stability | High-quality components for stable operation | Less stable, more prone to failure |
| Power Range & Applicability | Wide power options, suitable for various materials | Limited power options, less versatile |
| User Interface & Smart Features | Easy-to-use interface with smart auto-adjustment | Complex interface, manual adjustments needed |
| After-Sales Service | 24/7 support, fast parts supply, on-site service | Slower response and parts supply, more downtime |
| Customization & Flexibility | OEM/ODM services for tailored solutions | Fewer customization options, less flexibility |
Interested in UMW CO2 laser machine manufacturers?
Contact us now to get the best quote! We will give you the fastest response!
5030 co2 laser machine applicable industry
Packaging and gift customization industry
CO2 laser cutting & engraving machines can achieve complex patterns and patterns cutting. Supports engraving and cutting of multiple materials (paper, thin cardboard), meeting personalized needs and improving product quality.
Food decoration industry
CO2 laser cutting & engraving machines can engrave complex shapes on colored plastics. Non-contact processing will not damage the material, keeping it neat and smooth. It can quickly produce fine decorative parts and increase product added value.
Advertising and art industry
CO2 laser cutting machines can engrave fine contours and textures, suitable for materials such as ultra-thin plastics and wood boards. Through the contrast of light and dark and the characteristics of the material, it creates a unique artistic visual expression.
Some questions about co2 laser cutting machine
The power you choose depends on your processing needs:
Engraving: 40W-80W is enough.
Thin material cutting: 80W-150W is recommended.
Thick material or large area processing: higher power (such as 150W and above) is required.
If you are not sure, you can contact our technical support team for advice.
Yes, our CO2 laser machine is equipped with user-friendly control software and supports multiple file formats (such as DXF, AI, PLT). In addition, we provide operation videos and user manuals to help you get started quickly. If necessary, online technical guidance can also be arranged.
The daily maintenance of CO2 laser machines mainly includes cleaning lenses and reflectors, checking the laser tube water circulation (such as water coolers), and cleaning the residue on the cutting table. It is recommended to conduct a comprehensive inspection once a week to ensure the stable operation of the equipment.
The main consumables include laser tubes, lenses, and reflectors. Laser tubes need to be replaced regularly (usually more than 8,000 hours), and lenses and reflectors can be used for months or even longer under normal use.
Yes! We can customize the table size, laser power, automation configuration (such as automatic lifting table) and appearance design according to your processing needs. Please contact our sales team for more details of customized services.
The selection of the model depends on the following factors:
The type and thickness of the processing material.
The size of the processing format.
Do you need additional functions such as automatic focusing and lifting table?
We offer a variety of laser machine models to meet the needs of different customers. Welcome to contact us, our experts will recommend the most suitable product for you.
