UR-1390 Closed CO2 Laser Engraving Cutting Machine Supplier
This industrial laser cutting machine engraving machine can be applied to many industries such as advertising, machinery, models, clothing, etc. It has high precision, high efficiency and uniform processing results. The upgraded frame design, enhanced stability structure and longer service life.
Share:
high efficiency
high cost performance
High precision
Materials widely used
CO2 Laser Cutting & Engraving Machine Model List
| Mode |
UR-5030
|
UR-1390
|
UR-1325
|
||
|---|---|---|---|---|---|
| Working Area | 500*300mm | 1300*900mm | 1300*2500mm | ||
| Type | Closed | Closed | Open | ||
| Laser Power Supply | 40W | 70W,90W,100W,130W,150W | 130W,150W,200W,300W | ||
| Power Adjustment Range | 10%-100% | 10%-100% | 10%-100% | ||
| Output Central Wavalength | 1064nm | 1064nm | 1064nm | ||
| Cooling Method | Built-in Circulating Water Pump | Water Cooling | Independent Water Chiller | ||
| Locate Accuracy | +0.1mm | +0.1mm | +0.1mm | ||
| Upgrade | Smoke Purifier | Auto Focus Laser Head, Up-down WorkTable Also be made into: 6090 (600*900mm), 1410 (1400*1000mm),1610 (1600*1000mm) | Also be made into: 1530 (1500*3000mm), 2030 (2000*3000mm) | ||
UR-1390 Product Advantages
High Efficiency:
Can complete tasks quickly and adapt to the diversified production needs of multiple batches.
High Quality:
The cutting and engraving effects are delicate and meet high standards.
Good Flexibility:
Supports different materials and processing modes, requires no additional molds, and adapts to multi-scenario applications.
High-Cost Performance:
High-cost performance, low operating costs, and improved return on investment.
Highly stable laser tube
Strictly select laser tube suppliers to ensure stable output. A variety of powers from 75W to 300W are available for users to choose from, and its working life can reach 10,000 hours.
Upgrading Encrypted Blade Table
The gap between the blade and the material is relatively large, and the contact surface with the material is relatively small. The blade can adjust the density, which is very suitable for rigid advertising boards such as acrylic and MDF. Reduce the diffuse reflection of the laser and avoid leaving marks on the bottom of the material.

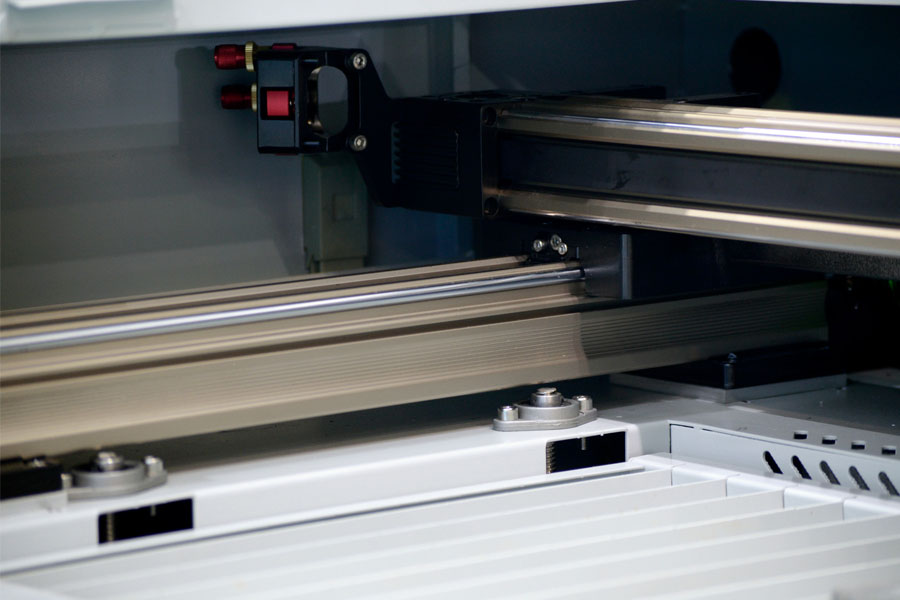

High-speed Inner rails
The high-speed inner slide rail is precisely designed to ensure smooth movement of the laser head during operation, thereby improving the accuracy of processing. The error is small and suitable for fine work. The low movement resistance can achieve fast response and support large-area processing.
Ruida Control System
Use the latest generation RDC6445G system of Ruida Technology. It has a friendly operation interface and more powerful functions. Work time preview is accurate to milliseconds. Processing path, coordinate points, and progress bar are displayed in real time. The controller motion control function is more complete.
UR-1390 Optional Features
Get more detailed information about UR-1390 CO2 Laser Machine, please get in touch with us!
Automatic focusing laser head
Fast and precise focusing, switching between materials of different thicknesses without interruption.
Dual laser heads
Two workpieces can be processed simultaneously, maximizing equipment utilization.
Automatic edge-finding camera
Find the mark point, and the edge cutting of KT board and acrylic board can be more convenient and quick.
Automatic loading and unloading
It is optional when cutting cloth, soft leather and plastic film, which greatly improves the work efficiency.
Automatic lifting table
Flexible height adjustment to support thick material processing. Operation convenience is greatly improved.
UR-1390 supports machine sizes
Need customization?
No problem!
Please tell us your requirements. Our professional team of engineers and strong production capacity will meet your needs!
1390 desktop co2 laser machine sample display
| Materials | Engraving | Cutting |
|---|---|---|
| Acrylic | √ | √ |
| Glass | √ | × |
| Plastic sheets | √ | √ |
| Leather | √ | √ |
| Metal | × | × |
| Paper | × | √ |
| Plastics | √ | √ |
| Stone | √ | × |
| Textiles | √ | √ |
| Wood | √ | √ |
co2 laser engraving machine working demonstration
The umw CO2 laser engraving machine has smooth cutting edges, no burrs, and exquisite engraving details. The processing results are uniform and consistent, without the need for multiple adjustments, ensuring the stability of mass production.
UMW VS other brands, what are the advantages?
With years of industry experience and technical accumulation, UMW is committed to providing high-quality CO2 laser-cutting machines. We ensure that each machine meets high standards through precise manufacturing processes, innovative technologies, and strict quality control.
| Advantage | UMW CO2 Laser Machines | Other CO2 Laser Machines |
|---|---|---|
| Machine Stability | High-quality components for stable operation | Less stable, more prone to failure |
| Power Range & Applicability | Wide power options, suitable for various materials | Limited power options, less versatile |
| User Interface & Smart Features | Easy-to-use interface with smart auto-adjustment | Complex interface, manual adjustments needed |
| After-Sales Service | 24/7 support, fast parts supply, on-site service | Slower response and parts supply, more downtime |
| Customization & Flexibility | OEM/ODM services for tailored solutions | Fewer customization options, less flexibility |
Interested in UMW CO2 laser machine manufacturers?
Contact us now to get the best quote! We will give you the fastest response!
What can 1390 co2 laser machine do for you?
Advertising industry
Can be used for acrylic cutting, acrylic light guide plate cutting, rubber plate cutting, seal engraving.
Wood products processing
Can be used for wood & density board engraving & cutting.
Education and Teaching
Through interactive lessons using the laser system, students’ conceptual ideas can be developed into real models or prototypes.
Some questions about co2 laser cutting machine
The power you choose depends on your processing needs:
Engraving: 40W-80W is enough.
Thin material cutting: 80W-150W is recommended.
Thick material or large area processing: higher power (such as 150W and above) is required.
If you are not sure, you can contact our technical support team for advice.
Yes, our CO2 laser machine is equipped with user-friendly control software and supports multiple file formats (such as DXF, AI, PLT). In addition, we provide operation videos and user manuals to help you get started quickly. If necessary, online technical guidance can also be arranged.
The daily maintenance of CO2 laser machines mainly includes cleaning lenses and reflectors, checking the laser tube water circulation (such as water coolers), and cleaning the residue on the cutting table. It is recommended to conduct a comprehensive inspection once a week to ensure the stable operation of the equipment.
The main consumables include laser tubes, lenses, and reflectors. Laser tubes need to be replaced regularly (usually more than 8,000 hours), and lenses and reflectors can be used for months or even longer under normal use.
Yes! We can customize the table size, laser power, automation configuration (such as automatic lifting table) and appearance design according to your processing needs. Please contact our sales team for more details of customized services.
The selection of the model depends on the following factors:
The type and thickness of the processing material.
The size of the processing format.
Do you need additional functions such as automatic focusing and lifting table?
We offer a variety of laser machine models to meet the needs of different customers. Welcome to contact us, our experts will recommend the most suitable product for you.
