Automated Laser Cleaning Solutions
UMW Robot Laser Cleaning Workstation Solution-Your One-Stop Solution Expert
Home | Industrial Robot | Laser Cleaning Robot
Your cleaning, Your Rules: 100% Custom-Built Robotic Solutions
Core advantages of customized robot Cleaning solutions
- Accurate adaptation for all scenarios
- Free control of technological sovereignty
- Double breakthrough in cost efficiency
- Zero-risk service commitment
- Global agile delivery

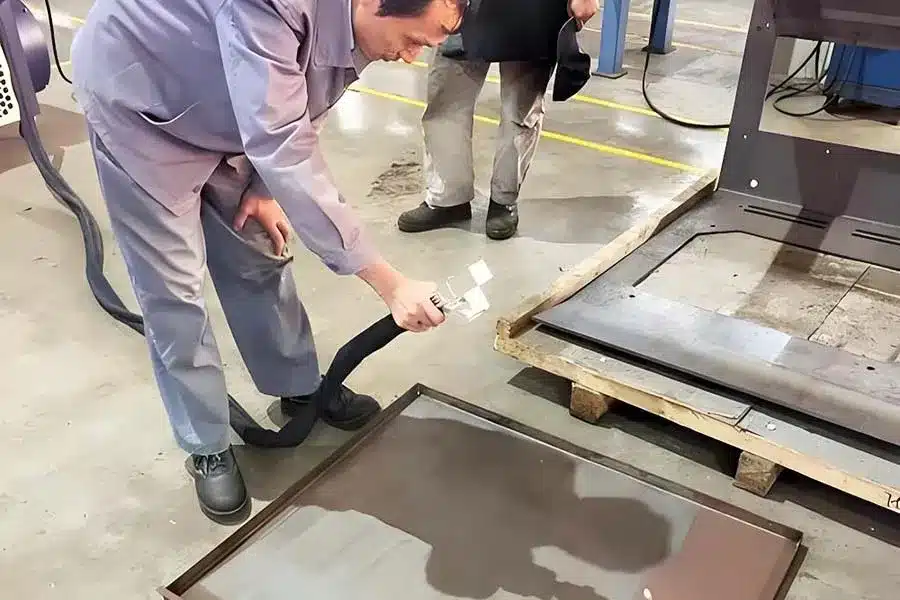

Handheld Laser Cleaning vs Robotic Laser Cleaning
Handheld Laser Cleaning vs Robotic Laser Cleaning
| Category | Handheld | Robotic |
|---|---|---|
| Power Range | 100W-500W | 300W-1000W |
| Precision | ±0.1mm (Manual) | ±0.02mm (Auto) |
| Mobility | Portable 3-axis | 6-axis + Rail system |
| Best For |
• Small parts • Field work |
• Mass production • Factory lines |
| Workpiece Size | <1m³ (Valves/Artifacts) | >1m³ (Frames/Metal sheets) |
| Automation | Manual operation | CAD/PLC programming |
| Setup Cost | $5K-$20K | $20K-$300K |
| Energy Use | 1.5kW/h (AC power) | 8kW/h (Industrial circuit) |
| Safety | PPE required | Enclosed workstation |
Core Advantages of Robotic Laser Cleaning
Unmatched Cleaning Efficiency
- 3-5x Faster: Wide-area laser scanning (50-200mm coverage) achieves 500㎡/day (≈5,380 sq.ft) for 2mm rust layers.
- Non-stop Operation: Equivalent to 20 skilled workers’ annual output.
Smart Autonomy
- One-click operation: AI auto-detects contaminants and optimizes parameters.
- Remote monitoring: Real-time progress tracking via PC/mobile devices.
Substrate-Safe Precision
- Non-contact cleaning: Laser energy is strictly controlled below material damage thresholds.
- Micron-level accuracy: ±5 μm cleaning depth control.
Total Cost Leadership
- Zero consumables: No abrasive/media replacement; 85% lower 5-year OPEX.
- 30-min maintenance: Modular design enables rapid part replacement.
Eco-Conscious Innovation
- Zero chemical waste: Eliminates abrasives/solvents; 99% dust capture via HEPA filtration.
- 70% energy saving: 0.3kW·h per ㎡ vs. sandblasting’s 1.2kW·h.
Universal Adaptability
- Industry-agnostic: Cleans 10-ton gearboxes to micro PCB coatings.
- 3D complex surfaces: 6-axis reach for pipes, turbine blades, and recessed geometries.
What You Can Do with Robotic Laser Cleaning？
Surface Contaminant Removal
▸ Metal corrosion (rust, patina)
▸ Industrial grease (cutting fluid residues, lubricants)
▸ Coating residues (paint, plating, mill scale)
Precision Component Pretreatment
▸ Surface activation pre-welding/bonding (enhanced adhesion)
▸ 3D-printed part support structure residues
▸ Semiconductor mold release agent removal
Industrial Mold Maintenance
▸ Rubber mold vulcanization layers
▸ Die-cast mold metal adhesion (Al/Mg alloy residues)
▸ Injection mold release agent buildup
Nuclear & Hazardous Environments
▸ Radioactive contaminants in reactor pipelines
▸ Flammable residues in chemical tanks
▸ Food machinery biofilm (chemical-free sterilization)
Robotic laser cleaning application solution display
1. High-Speed Rail Gearbox Laser Cleaning System
▎Challenge
Traditional manual cleaning for rail gearboxes (2.5m×1.8m×1.2m):
8-12hrs/unit, ＜80% yield
Chemical hazards with $50k+ annual PPE cost
▎Solution
Full 3D coverage: Gantry system + 6-axis robotic arm (5m×3m×2m workspace)
Dual-laser tech: 2000W CW laser (paint/oil) + 500W pulsed laser (precision rust)
Zero pollution: Dual air-knife system, ＜5mg/m³ residue (Exceeds ISO 14644-1 Class 7)
2. EV Battery Cover Laser Cleaning System
▎Challenge
Manual coating removal damages zinc layers (yield <75%)
Chemical cleaning costs $200k/year with RoHS non-compliance
▎Solution
Dual-laser: 500W pulsed (coating) + 1000W CW (oil/debris)
0.02mm precision: Robotic + galvanometer positioning
Zero emission: HEPA filtration (dust <5mg/m³)
3. Auto Body-in-White Laser Cleaning System
▎Challenge
Manual grinding takes 2hrs/car body with dust hazards
$150K annual chemical cleaning cost & RoHS non-compliance
▎Solution
Wide-area cleaning: 2000W fiber laser, 200mm width coverage
Smart 3D vision: AI path planning cuts process to 20mins/car
Zero emission: Dust control <1mg/m³ (Exceeds ISO 14644-1 Class 1)
For more application solutions, please contact us！
- The professional technical team provides all-around support.
- A wealth of cases and system solutions enable.
- A wide range of machine models and laser cleaning process research to develop the most suitable solution for you.
Demonstration of robot cleaning effect
High Efficiency
More Accurate
More Secure
Some common misunderstandings about laser cleaning
Fact: Robotic TCO becomes 42% lower than handheld at >30k pieces/year.
Fact: With rail extensions, handheld cleans 5m-long parts.
Fact: Our pre-programmed kits enable installation in 72hrs (Standard ISO cells).
Fact: Adaptive power control maintains surface roughness within ±0.1µm.
How to Choose? Robotic vs Handheld Laser Cleaning
——Find Your Ideal Solution in 3 Minutes
Choose Robotic Laser Cleaning If Any of These Apply
✅ High-Volume Production
Daily cleaning volume >200 pieces or annual capacity >50,000 pieces
Requires integration with MES/ERP for full automation
✅ Complex Workpieces
Workpiece size >2m×1m×1m or weight >500kg
3D curved surfaces (e.g., gearbox internals, turbine blades)
✅ Strict Quality Control
Cleaning depth tolerance ≤±0.05mm (e.g., aerospace components)
Requires 100% digital process traceability
✅ Sensitive Environments
Explosion-proof/cleanroom operations (e.g., nuclear, semiconductor)
Zero chemical emissions required
Choose Handheld Laser Cleaning If Any of These Apply
✅ Mobility Priority
Frequent location changes (e.g., shipyards, outdoor structures)
Fixed positioning challenges (e.g., bridges, underground pipes)
✅ Low Volume & High Mix
Batch size <50 pieces or monthly workpiece variations >10 types
Budget constraints (CAPEX <$30K)
✅ Precision Restoration
Millimeter-level localized cleaning (e.g., artifacts, medical devices)
No automation interface requirements
From demand to solution only 4 steps, 72-hour rapid response
Demand Confirmation
Solution Planning
Solution Configuration
Robot Selection
