Precision cobot welding robot
The cobot welding robot are ideal for intelligent manufacturing. Combining high precision and safety, they can be widely used in a variety of scenarios such as assembly, handling, welding, etc.
They are lightweight, small in footprint, and flexible to install. They can be installed on the ground, upside down, or on the wall.
cobot welding robot Core Advantages
Ease of operation
One-button start for components such as laser and chiller.
Collision Alarm Function
Utilizes traditional collision detection, force, and power detection technologies.
Flexible laser power selection
Offers multiple laser power options: 1500W, 2000W, 3000W, and 6000W.
Highly integrated design
The control cabinet integrates the laser and collaborative robot control box, which greatly reduces space occupation and improves the overall reliability and ease of operation of the system.
Drag and drop teaching
CE emergency
stop button
Customized welding tabletop
The standard size of the welding table is 1000 x 1000 mm, but it can be customized according to customer requirements.
High precision and stability
Repeatability can reach ±0.02mm, reducing human error.
High-integration design of collaborative robots
The control cabinet integrates the laser and collaborative robot control box, which greatly reduces space occupation.
The control cabinet integrates the laser and collaborative robot control box, which greatly reduces space occupation and improves the overall reliability and ease of operation of the system.
- One-button start-up of components such as the laser and chiller simplifies the startup process.
- The overall design is compact, with movable wheels at the bottom for easy transport and flexible deployment.
Customizable welding tabletop
Welding station dimensions: 1000X1000mm, customization is supported.
The welding table size can be customized according to customer needs, with a standard size of 1000X1000mm, which can flexibly adapt to different welding needs and meet various industry applications.
Equipped with advanced collaborative robots
Equipped with advanced collaborative robots featuring collision alarms, it can automatically detect and avoid obstacles, protecting equipment and workpieces.
It supports drag-and-drop teaching, allowing operators to easily program and teach equipment manually by dragging and dropping, simplifying the production process.
High Precision and Stability
The laser welding system, combined with collaborative robots, provides high-precision welding with a repeatability of ±0.02mm, reducing human error and ensuring consistent weld quality.
Emergency shutdown protection
Both the machine and collaborative robot teach pendant are equipped with a CE emergency stop button.
The machine is equipped with an emergency stop button that meets EU CE standards. Both the machine and the collaborative robot teach pendant are equipped with emergency stop buttons that comply with CE safety standards, ensuring rapid shutdown in emergency situations and protecting the safety of operators and equipment.
6 axis robotic arm Core Advantages
Collision Alarm Function
Utilizes traditional collision detection, force, and power detection technologies.
Integrated Arc Welding Control
Force control sensors combined with arc welding.
Drag-and-Teach Function
The robot body features a drag-and-teach function, coupled with a high-precision force control sensor,
resulting in a lighter drag feel and higher teaching efficiency.
Lightweight body design
Lightweight, typically around 25 kg.
Emergency Stop Switch
Lightweight
Multi-Language Teach Pendant
The teach pendant currently supports up to 24 languages, meeting the needs of customers in different countries and regions.
Lightweight Control System
The control system is small and lightweight, allowing for handheld movement.
Force control sensor with high precision feedback
Force sensors provide precise force sensing and real-time feedback, ensuring more stable and controllable operation.
Lightweight Dragging Experience
The force sensor uses high-precision feedback to achieve a lighter dragging experience.
Accommodation to Arc Welding Processes
Seamlessly integrates with arc welding systems, combining teaching and welding control.
One-Click Switching
One-click operation allows for welding start/stop/process switching.
Improved Teaching Efficiency and Stability
Enhanced manual teaching efficiency through precise force sensing and real-time response.
Multilingual teach pendant & control cabinet
The control system is the brain of the robot, controlling operations such as loading and unloading, gripping, grinding, handling, welding, gluing, and oiling. It also performs input/output control functions.
Teach pendant
A teach pendant is a user interface for programming and controlling robots, equipped with an intuitive touchscreen. It supports multiple language systems, features an emergency stop switch, and the latest UMW teach pendant is lightweight.
control cabinet
The controller is used to control operations such as loading and unloading, gripping, grinding, handling, welding, gluing, and oiling.
The latest UMW control cabinet balances safety and flexibility while reducing its footprint.
6 Axis Cobot Robot Welding VS. 5 Axis Platform Welding Robot
6 Axis cobot welding robots and 5-axis platform robots are both popular products, so how should one choose between them?
6 axis cobot robot welding
6 axis robotic arm
A 6-axis cobot welding has six axes on its robotic arm, making it more flexible than a 5-axis.
Complex movements
To enable more complex actions, such as advanced manufacturing industries like vehicle body welding and casting.
High flexibility
The welding torch can reach any position within the working range.
5 axis Platform welding robot
5 axis robotic arm
The robotic arm has five axes: base, shoulder, elbow, wrist, and end effector.
Complex movements
5-axis platform welding robots are more often used for simple operational tasks, such as handling, measuring, and processing.
welding range relatively limited
The welding range is relatively limited, but flexibility can be enhanced by using a positioner.
What you can do with collaborative robots?
Collaborative robots, also known as cobots, are revolutionizing the way we approach industrial automation. Designed to work alongside humans, these versatile robots improve efficiency, precision, and safety across a variety of industries.
- Easy to Operate
- Safe and Flexible
- Fast and Accurate
- High Quality
Handheld Laser Welding VS. Cobot Welding
Handheld Laser Welding
Cobot Welding
Examples of Cobot Welding Robot Applications
Sheet Metal Processing
Automotive Parts Manufacturing
Medical Device Industry
Electronic Product Manufacturing
Small Parts Manufacturing Industry
Precision Optics and Photovoltaic Industry
Complex Welding Made Easy
UMW laser welding robot is great for tricky jobs. It can handle curved welds, 3D shapes, tight seams, and hard-to-reach spots. Perfect for projects that need both accuracy and speed.
- High welding consistency
- High weld precision
- Stable production efficiency
- Highly flexible and adaptable
- Controllable welding deformation
- Safe and collaborative
Collaborative robot video demonstration
Collaborative robot welding application case
High Precision: Repeatability of ±0.02mm ensures flawless weld quality.
Enhanced Efficiency: Capable of continuous operations to handle complex welding tasks.
Improved Safety: Keeps workers away from high temperatures and harmful fumes, creating a safer workplace.
Collaborative robot loading and unloading application case
High Flexibility: Adapts to various shapes and sizes of workpieces.
Quick Deployment: Easily integrates into existing production lines without complex programming.
Consistent Performance: Operates around the clock, maintaining stable and efficient output.
Get a Custom cobot Robotic Welding Solution
Our engineers will design a platform robotic welding solution tailored to your application.
cobot welding robot parameters
Overall configuration
| Welding robot models | Collaborative robot UA5-910 or UA10-1300 (can be replaced according to requirements) |
|---|---|
| Laser Power Selection | 1500W, 2000W, 3000W, 6000W |
| Welding Table Dimensions | Standard size: 1000mm × 1000mm (other sizes can be customized) |
| Electrical Control Cabinet | Integrates laser, collaborative robot electrical control box, and chiller |
| Emergency Stop Protection | Emergency stop buttons compliant with EU CE standards are provided on both the machine and the collaborative robot teach pendant. |
| Robot Accuracy | Repeatability: ±0.02mm |
| Operation Buttons | Buttons for one-button start of components such as the laser and chiller |
| Working Environment | Standard factory environment, adaptable to different production scenarios |
| Mobility | Equipped with movable wheels for easy transport and deployment |
| Voltage | 220V 1Ph 50/60Hz / 380V 3Ph 50/60Hz |
cobot welding robot body
|
|
|
||
|---|---|---|---|---|

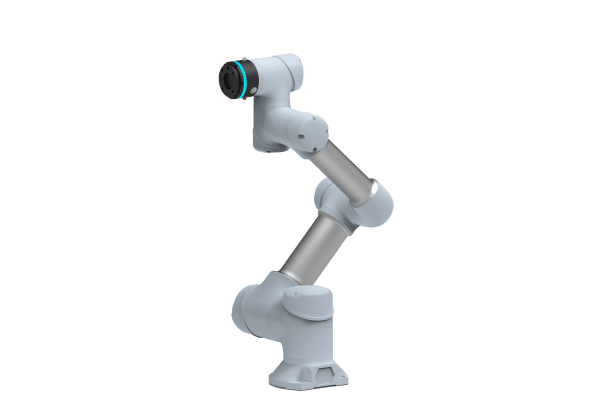

| Model | UA3-618 | UA5-910 | UA10-1300 | |
| Max Payload | 3 kg | 5 kg | 10 kg | |
| Degress of Freedom | 6-axis | 6-axis | 6-axis | |
| Max Straight-Line Speed | 0.8m/s | 1.5m/s | 1.5m/s | |
| Reach | 618mm | 917mm | 1300mm | |
| Power Supply | 100-240VAC, 47-63Hz, 10a | |||
| Ambient Temperature Range | -10°C to 45°C | |||
| Welding Power Range | 1KW - 3KW | |||
| Compatible Welding Types | Flat, 3D, curved, circular seams | |||
| Supported Welding Heads | Handheld laser guns, Automatic laser heads | |||
| Material Compatibility | Carbon steel, stainless steel, aluminum alloy | |||
| Cooling System | Water cooling | |||
| Safety Features | Collision detection, emergency stop, human-friendly design | |||
| Languages Supported | Chinese, English, Japanese, Russian, etc. | |||
Teaching Assistant System
| Joystick Direct & Torque Sensor Teaching Module Specifications | |
|---|---|
| Rate of Work | <1A |
| IP Level | IP65 |
| Operating Ambient Temperature | -10°C~50°C |
| Power | 24V DC |
| Relative Humidity | 95%, Without Condensation |
cobot welding robot FAQs
What is the payload capacity of cobot welding robots?
The end effector of a collaborative robot typically carries a payload of 5kg to 10kg.
How is the machine shipped and installed?
The machine comes in parts with secure packaging. We provide installation help through video guides, manuals, or on-site support if needed.
Does it require additional gas for welding?
Yes, it requires nitrogen gas and an air compressor to ensure optimal welding results.
Can I see a demo before buying?
Yes, we offer video demonstrations or live sessions to show how the machine works with your specific materials.
cobot robot welding Customization Solution
